A Cylindrical Dielectric Resonant Antenna

A crafted cylinder lump of dielectric can be used to generate simple antenna from a puck to a rod. The use of dielectric means there are no metalisation losses except for those in the excitation elements. usage 1GHz upwards to mm waves.

As usual all results: AS IS, no responsibility assumed.

Frequency (1GHz.. 100Ghz)

Dielectric diameter mm (1000.. 0.01)

Dielectric height mm (1000.. 0.01)

Effective Dielectric (100.. 0.9)

Effective Magnetic (100.. 1.0)

Probe Length mm (100.. 0.01)

Probe Diameter mm (10.. 0.001)

Probe Centre Offset Radius (1.. 0.00)

Probe Angle degrees (0 ... 360)

Probe Line Z (1..350 Ohms

A Cylindrical Dielectric Resonant Antenna

A Cylindrical Dielectric Antenna Selection

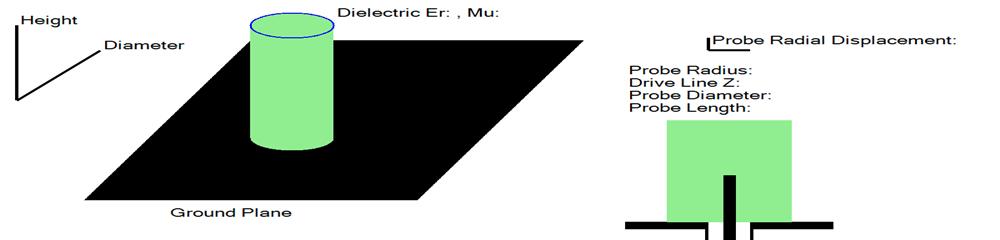

Dielectric Cylindrical Antenna Format

Note:

The cylindrical dielectric antenna is excited by a probe inserted into the dielectric at radius.

The probe is axial to the cylinder at a radius. The probe length is the z offset for E calculations.
