A Rectangular Dielectric Resonant Antenna

A crafted rectangular lump of dielectric can be used to generate simple antenna. The use of dielectric means there are no metalisation losses except for those in the excitation elements. usage 1GHz upwards to mm waves.

As usual all results: AS IS, no responsibility assumed.

Frequency (1GHz.. 100Ghz)

Dielectric width mm (1000.. 0.01)

Dielectric length mm (1000.. 0.01)

Dielectric height mm (1000.. 0.01)

Effective Dielectric (100.. 0.9)

Effective Magnetic (100.. 1.0)

Probe Length mm (100.. 0.01)

Probe Diameter mm (10.. 0.001)

Probe X Centre Offset mm (1.. 0.00)

Probe Y Centre Offset mm (1.. 0.0)

Probe Line Z (1..350 Ohms

A Rectangular Dielectric Resonant Antenna

A Rectangular Dielectric Antenna Selection

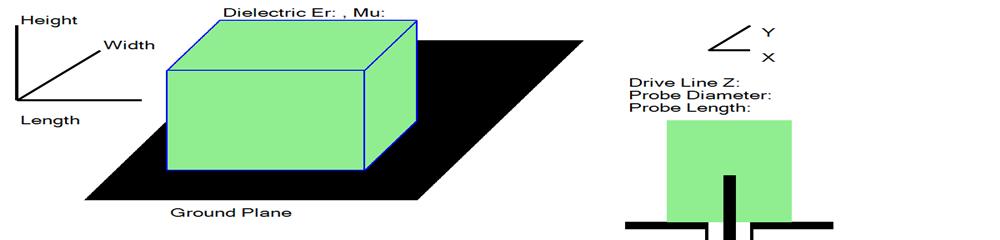

Dielectric Rectangular Antenna Format

Note:

The rectangular dielectric antenna is excited by a probe inserted into the dielectric.

The probe can be offset in the x, y directions of the ground plane. The proble length is the z offset for E calculations.
