Single line Inductor over a ground plane

The extreme case of a single layer coil with infinite pitch, in this case over a ground plane and a pair of dielectrics

Inductor Specification

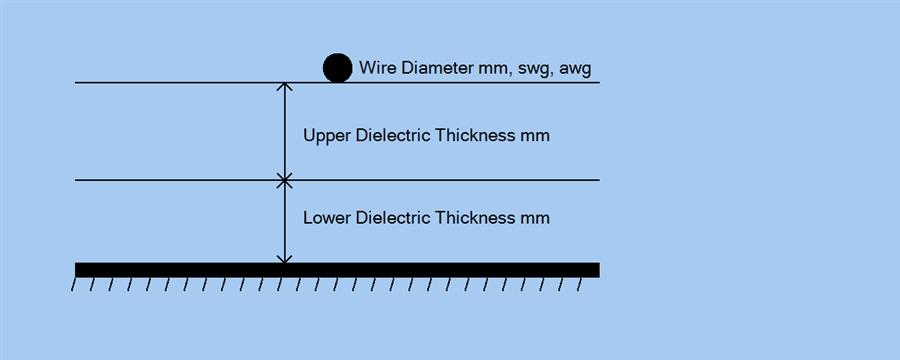

Inductor Diagram

Design Specification

Frequency (1Hz.. 100GHz)

Wire mm (0.01.. 100), swg, awg

Length mm (0.11.. 1000)

Upper thickness mm (0.1.. 100)

Upper Dielectric (1.0.. 100)

Lower thickness mm (0.1.. 100)

Lower Dielectric (1.0.. 100)

Possible Material Values
